Split Solar Street Light 60W/70W, Philips 5050 LED, IP65 Aluminum Solar Road Lamp for Village Road, Municipal Lighting Project

Premium Split Solar Street Light | High Lumen Outdoor Solar Road Light

LEADRAY LR-MH3 split solar street light is a separated solar road lighting solution, designed for off-grid outdoor lighting projects. Separated solar panel & lamp head structure allows flexible angle adjustment to capture maximum sunlight, delivering stable bright illumination all night long.

Adopting premium die-cast aluminum lamp body with integrated heat dissipation structure, Philips 5050 high-lumen LED chips and long-cycle LiFePO4 lithium iron phosphate battery, our solar street light achieves high luminous efficiency up to 160lm/w, wide color temperature range 2700K-6500K, IP65 full waterproof & lightning protection, perfectly adapting to all harsh outdoor weather.

Two mainstream configurations (60W/70W solar panel) to match different road width, mounting height and lighting duration demands, widely applied in village roads, suburban highways, community parks, factory lanes and municipal lighting engineering.

Split Adjustable Structure：Independent solar panel bracket, freely adjust solar panel tilt angle to maximize solar energy absorption, higher charging efficiency than integrated solar lights.

Philips Original LED Chips：150pcs 5050 Philips LED source, 160lm/w ultra-high light efficiency, CRI＞75Ra, soft uniform light without glare, long service life.

LiFePO4 Safe Lithium Battery 3.2V LiFePO4 battery, 50AH/60AH two capacity options, anti-explosion, low self-discharge, support over 3000 deep charge-discharge cycles.

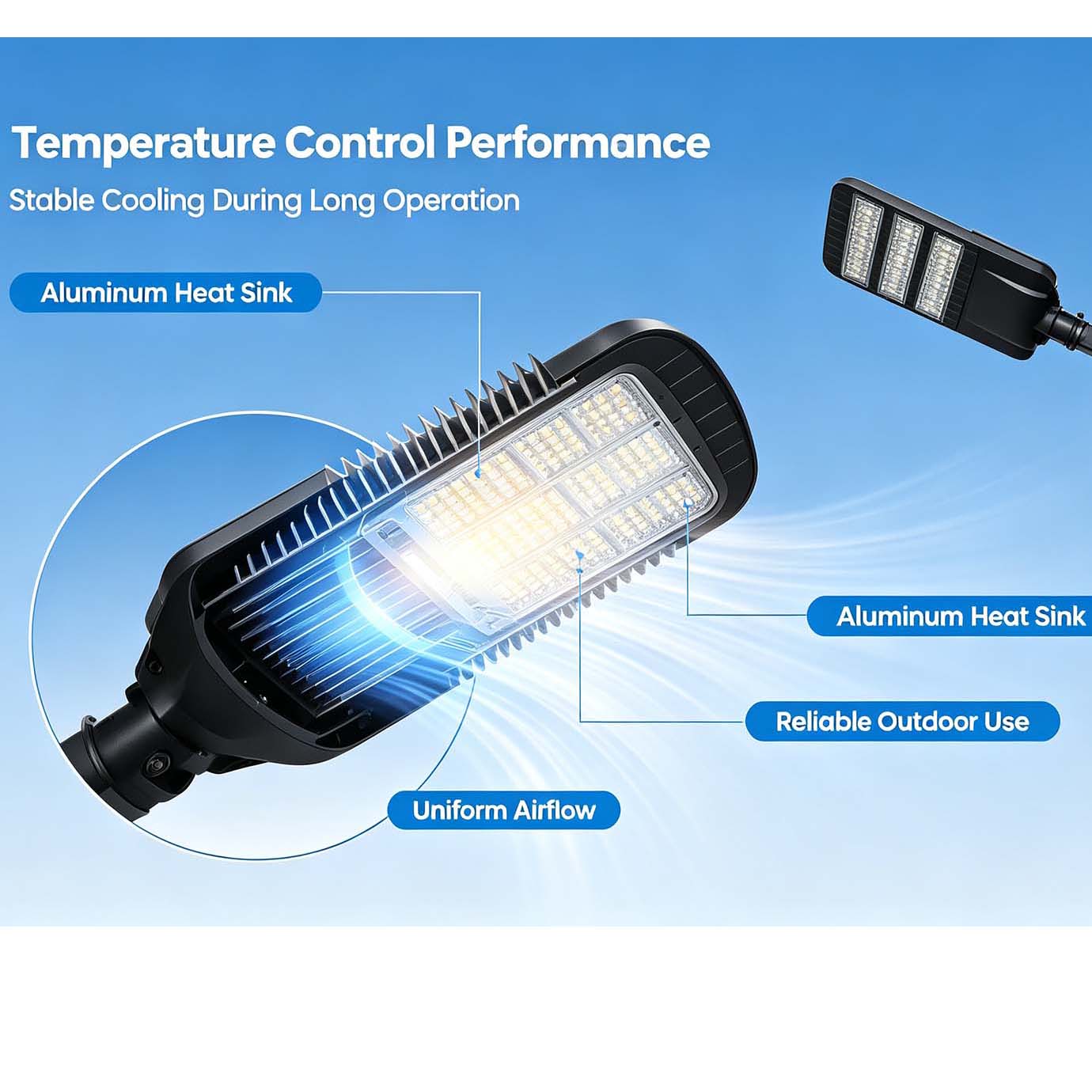

Excellent Heat Dissipation Design：Full die-cast aluminum lamp housing with strip heat sink, fast heat conduction, effectively lower LED working temperature, extend lamp service time.

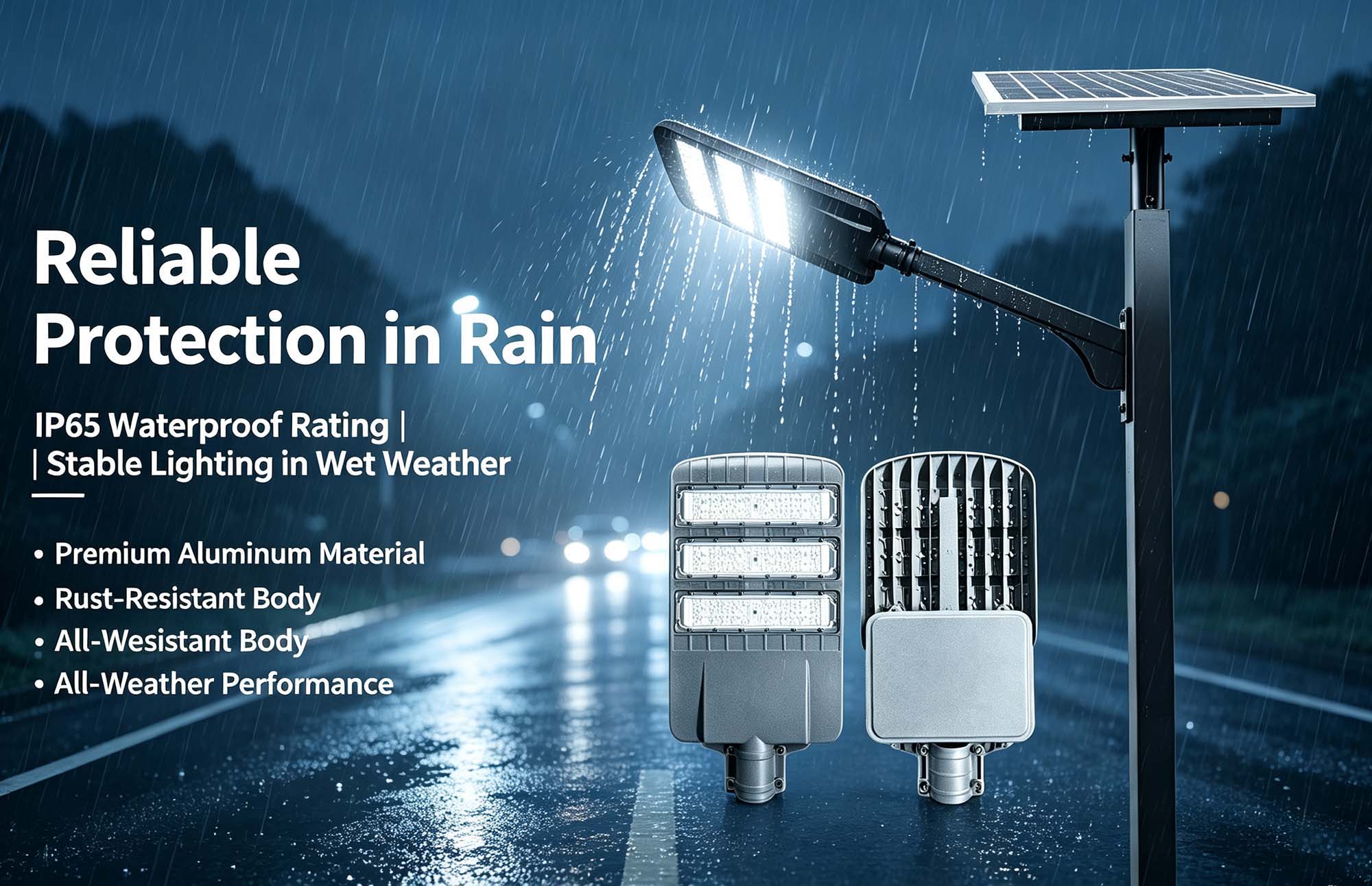

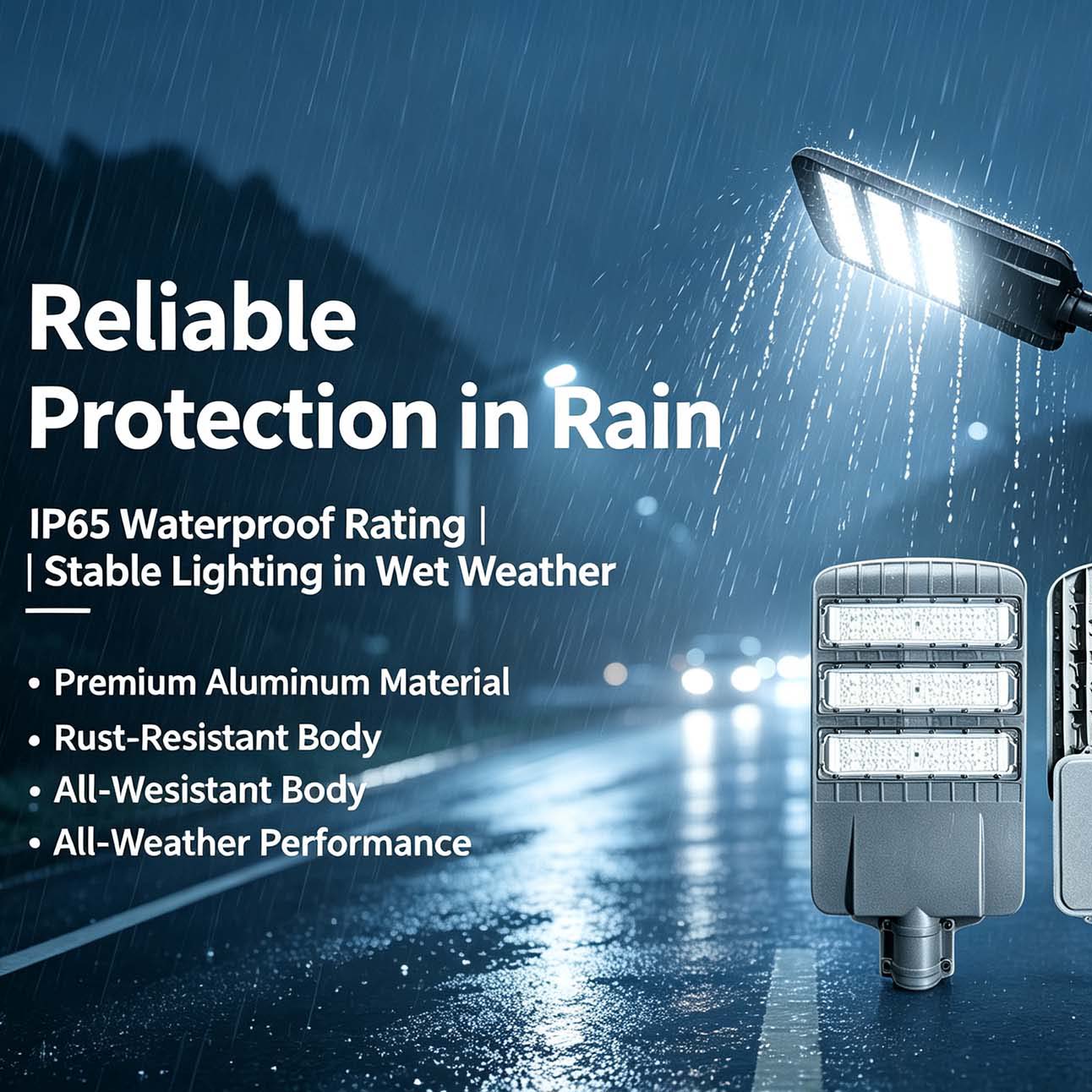

Sealed whole lamp structure, IP65 dustproof & waterproof grade, built-in lightning protection module, work normally in rainy, snowy, high-temperature outdoor environments.

Auto Dusk to Dawn Intelligent Control：Built-in light sensor, automatically turn on at dusk and shut down at dawn, no manual operation required, zero electricity bill.

Wide Application & Easy Installation：Simple pole mounting design, no complicated wiring, suitable for 5-7m light poles; two spacing standards 17-19m for different power versions.

Reliable After-sales Support：3-year full warranty, factory direct supply, support customized power, color temperature, packaging and project technical guidance.

LEADRAY is a professional integrated manufacturer focusing on split solar street lights, all-in-one solar road lamps and solar garden lights, with a modern production base covering over 68,000 square meters.

We own full automatic production lines including aluminum die-casting workshop, SMD LED patch workshop, lithium battery assembly line, solar panel production line and aging testing workshop. Monthly output of solar street lights reaches 25,000 sets, supporting bulk order delivery for global municipal engineering projects.

Every product goes through 5 strict testing procedures before shipment: solar panel power test, LED aging test, battery charge-discharge cycle test, IP waterproof spray test, all-night continuous lighting simulation test. All core raw materials (Philips LED, LiFePO4 battery) are sourced from certified top-tier suppliers.

Our LR-MH3 series split solar street lights pass CE, RoHS, EPA, IP65 third-party testing certification, meet import standards for Europe, Southeast Asia, Africa and South America markets, can provide full certification files for customer customs clearance and project bidding.

We provide one-stop solution for solar lighting projects: free lighting layout design according to road width, pole height and local sunshine condition, technical installation guide video, on-site engineer remote guidance, flexible MOQ for small distributors and large-scale municipal bulk orders.

Our solar street lights have been exported to over 40 countries, including South Africa, Zimbabwe, Peru, Southeast Asia, Eastern Europe and Middle East regions, with stable cooperation with engineering contractors, lighting distributors and government procurement agencies worldwide.

FAQ

Q1: What's the difference between the 60W and 70W solar panel versions?

A1: The main differences are solar panel power, battery capacity and LED power.

60W panel version: 50AH battery + 20W LED, for 5-6m poles, narrow village roads with 17-19m lamp spacing.

70W panel version: 60AH battery + 30W higher power LED, for 6-7m poles, wider main roads, longer all-night lighting duration.

Both share the same lamp body size and heat dissipation structure.

Q2: Are the LED chips original Philips?

A2: Yes, we adopt genuine 5050 Philips LED chips, 160lm/w high luminous efficiency, stable light attenuation performance, longer service life than generic domestic chips. We can provide chip certification documents for engineering tender projects.

Q3: How many hours can the light keep lighting after one day’s full sun charge?

A3: Under standard 6-8 hours sunlight condition:

60W version: sustain 8-10 hours full brightness night lighting;

70W version: sustain 10-12 hours continuous lighting.

We also support customized dimming mode to extend lighting time on cloudy days.

Q4: Is the lamp waterproof for heavy rain or thunderstorm areas?

A4: The whole lamp reaches IP65 waterproof grade, fully sealed aluminum housing prevents rainwater infiltration. Built-in lightning protection circuit module, suitable for thunderstorm-prone mountainous and suburban areas. It can work normally under -30℃~+60℃ temperature environment.

Q5: What's the lifespan of the LiFePO4 battery?

A5: Our lithium iron phosphate battery supports more than 3000 charge and discharge cycles, normal service life over 8 years, far longer than lead-acid batteries, no risk of liquid leakage or explosion.

Q6: Can I install this solar light on existing light poles?

A6: Yes, the lamp arm is compatible with standard 50-60mm diameter light poles, easy bolt-on installation without digging cables or connecting city power. We provide complete installation accessories together with goods.

Q7: What's your warranty policy?

A7: We offer a full 3-year factory warranty for all LR-MH3 split solar street lights. Within warranty period, we supply free replacement of damaged core accessories (LED board, battery, controller) caused by non-human damage.

Q8: Do you support OEM & ODM customization for engineering projects?

A8: Yes. We support custom solar panel power, battery capacity, CCT, lamp logo printing, outer carton packaging, and can provide complete tender documents, product test reports, CE & EPA certification for government municipal projects.
