12.8V Large Capacity LiFePO4 Battery Integrated Solar Street Light IP66 Waterproof Outdoor LED Solar Road Light With Remote Control

12.8V Large Capacity LiFePO4 Battery Integrated Solar Street Light IP66 Waterproof Outdoor LED Solar Road Light With Remote Control

LRC-H40W 40W Solar Street Light | 230Lm/W High Brightness 7200Lm Remote Control Motion Sensor Road Lamp.



All In One Solar Street Light | Philips 5050 LED 230Lm/W PIR Motion Sensor Remote Control Road Lamp.



Factory OEM 30W~150W Solar Powered Street Lamp with MPPT Controller & Intelligent Dimming Function.



IP65 Waterproof Integrated Solar Streetlight, Military LiFePO4 Battery 3-5 Days Rainy Backup Outdoor Lighting.

  • Número de artículo :

    LRC-H40W
  • Pedido (MOQ) :

    36
  • Tipo de batería :

    12.8V 30ah
  • Energía de paneles solares :

    65W 18V
  • Potencia del LED :

    40W
CONSULTE AHORA

All-in-One Solar Street Light


Industry-Leading High-Efficiency Lighting
The LRC-H40W is equipped with original Philips 5050 LED chips, achieving a super high luminous efficacy of 230 Lm/W and a total luminous flux of 7200 Lm. The 150°×80° ultra-wide beam angle realizes large-area uniform road coverage, perfectly matching the 20-25m standard installation spacing for 40W solar street lights.

Industry-Leading High-Efficiency Lighting


Core Optical & Performance Parameters


Parameter Specification
Model LRC-H40W
Rated Light Power 40W
Typical Luminous Flux 7200 Lm
LED Luminous Efficacy 230 Lm/W
Color Temperature Range 2700-6500 K
Beam Angle 150° × 80°
Minimum Working Hours (100% Full Brightness) 14 H
Minimum Working Hours (30% Energy-Saving Brightness) 46 H
Light Control Activation Threshold 30 Lux



All In One Solar Street Light



Dimensional & Packaging Parameters


Category Specification
Lamp Body Overall Dimensions 918 × 378 × 60 mm
Mounting Base Dimensions 236 × 140 × 112 mm
Lamp Outer Package Dimensions 990 × 440 × 165 mm
Base Outer Package Dimensions 415 × 175 × 160 mm



High Efficiency Solar & IP65 Waterproof Structure
Adopts high conversion monocrystalline silicon solar panel, excellent weak-light power generation, conversion efficiency up to 23%, auto-charges during daytime under sunlight.
Whole lamp body with IP65 full waterproof grade, dustproof & rainproof, works steadily in rainy, snowy and coastal humid harsh environments.

High Efficiency Solar & IP65 Waterproof Structure


Modular Philips 5050 LED Lighting System
Original Philips 5050 high-brightness LED chips, ultra-high luminous efficiency 230Lm/W, total lifespan up to 80,000 hours, ultra-low light decay.
Bat-wing optical distribution lens design, light transmittance reaches 93%, 150°×80° wide beam angle for uniform & larger road illumination range; customized independent heat sink for outstanding heat dissipation performance.
Low-current driving design, lighting efficiency increased by 40% vs conventional street lamps, more power-saving.

Military-Grade LiFePO4 Battery & Full Protection System
Built-in military-level lithium iron phosphate battery, over 2000 charge-discharge cycles, superior safety & thermal stability; surrounded by reinforced metal protective shell.
Integrated multi-protection circuit: overcharge, over-discharge, high/low temperature anti-damage protection, effectively extend battery service life.
Full-charged lamp supports continuous standby for 3~5 rainy days, meets long-time cloudy weather lighting demand.


Military-Grade LiFePO4 Battery


Intelligent Multi-Control Driver System

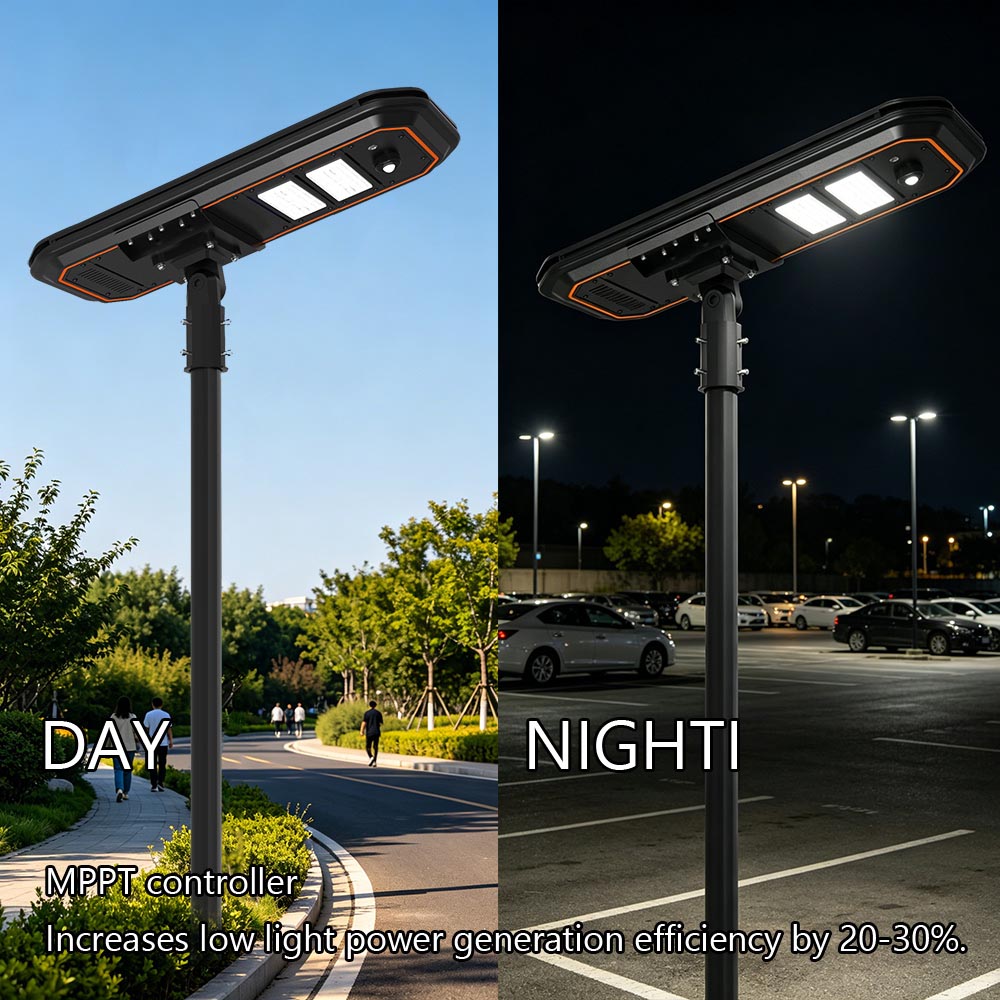

MPPT Tracking Charging Tech: 95% high charging efficiency, faster solar energy collection speed.

Constant Current Drive: Drive efficiency>95%, suppress LED light attenuation and prolong lamp service life.

Multi Working Modes:
Light sensor auto on/off: auto turn on at dusk, shut down for charging at dawn;

PIR human motion induction: 100% full brightness when people pass by, keep 30% dim energy-saving brightness without motion;
Optional timing control + 2.4G remote control for manual brightness adjustment.


Parameter project LRC-H30W LRC-H40W LRC-H60W LRC-H80W
Photovoltaic panel configuration 50W 18V 65W 18V 80W 18V 100W 18V
Lithium iron phosphate battery 12.8V24Ah 12.8V30Ah 12.8V36Ah 12.8V42Ah
Philips 5050 LED bead quantity qty 24 PCS 36 PCS 56 PCS 114 PCS
Rated power 30W 40W 60W 80W
Rated luminous flux 5400lm 7200lm 10800lm 14400lm
High luminous efficacy Unified 230Lm/W, standard across the entire series
Full brightness/30% dimming range 13h /43h 14h/46h 14h/46h 13h/44h
Duration of cloudy and rainy weather Full specification 3-5 days
Adapt to installation pole height 4~6m 4~6m 6~8m 6~8m
Installation spacing of lighting fixtures 15~20m 20~25m 25~30m 30~35m

21 years professional solar lamp manufacturing experience, 50+ professional R&D & production employees, monthly production capacity over 50,000pcs.

Support OEM & ODM customized service, full certificates: CE, ISO, ROHS, CB, TUV, reliable for global government road project & bulk wholesale orders.

Available power options: 30W/40W/60W/80W/100W/120W/130W/150W, CCT adjustable from 2700K~6500K.
