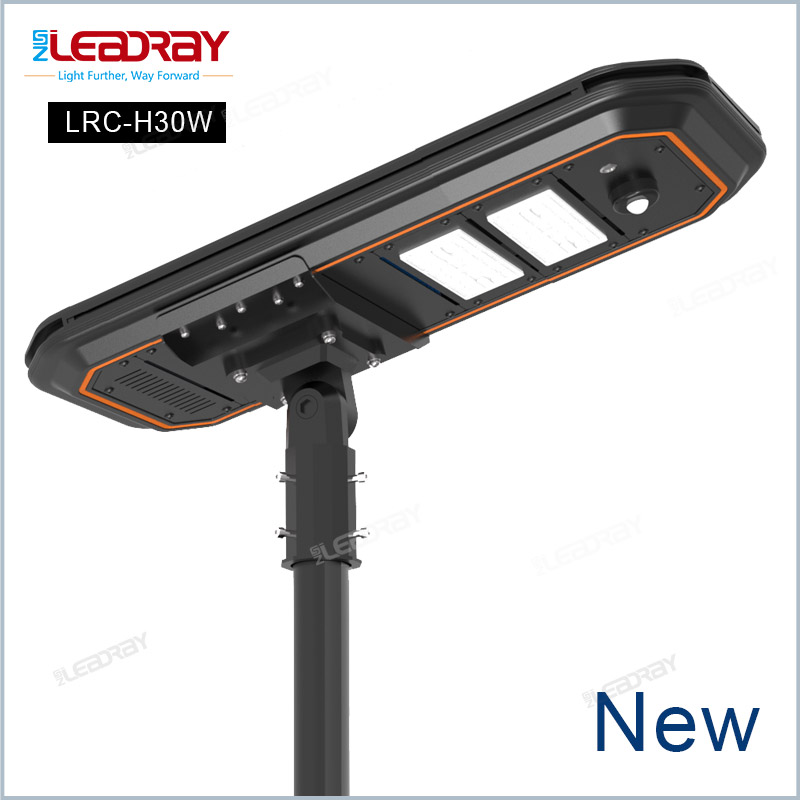

30W Solar Street Lamp Daytime PV Auto Energy Storage + Remote Dimmable High Lumen Lighting

Full specification power coverage: 30W~150W full power selection, suitable for all scenarios from alleys and sidewalks to municipal main roads and park parking lots.

Fully integrated body: photovoltaic panels, LED light sources, energy storage batteries, and control systems are all integrated into one, without the need for wiring or external power supply. It can be installed on poles, saving cable and labor construction costs;

The bracket can be adjusted from multiple angles, flexibly adjusting the irradiation angle to meet the installation needs of different pole heights and road widths;

The shell is corrosion-resistant and rust proof, resistant to typhoons and hurricanes, and has strong outdoor durability.

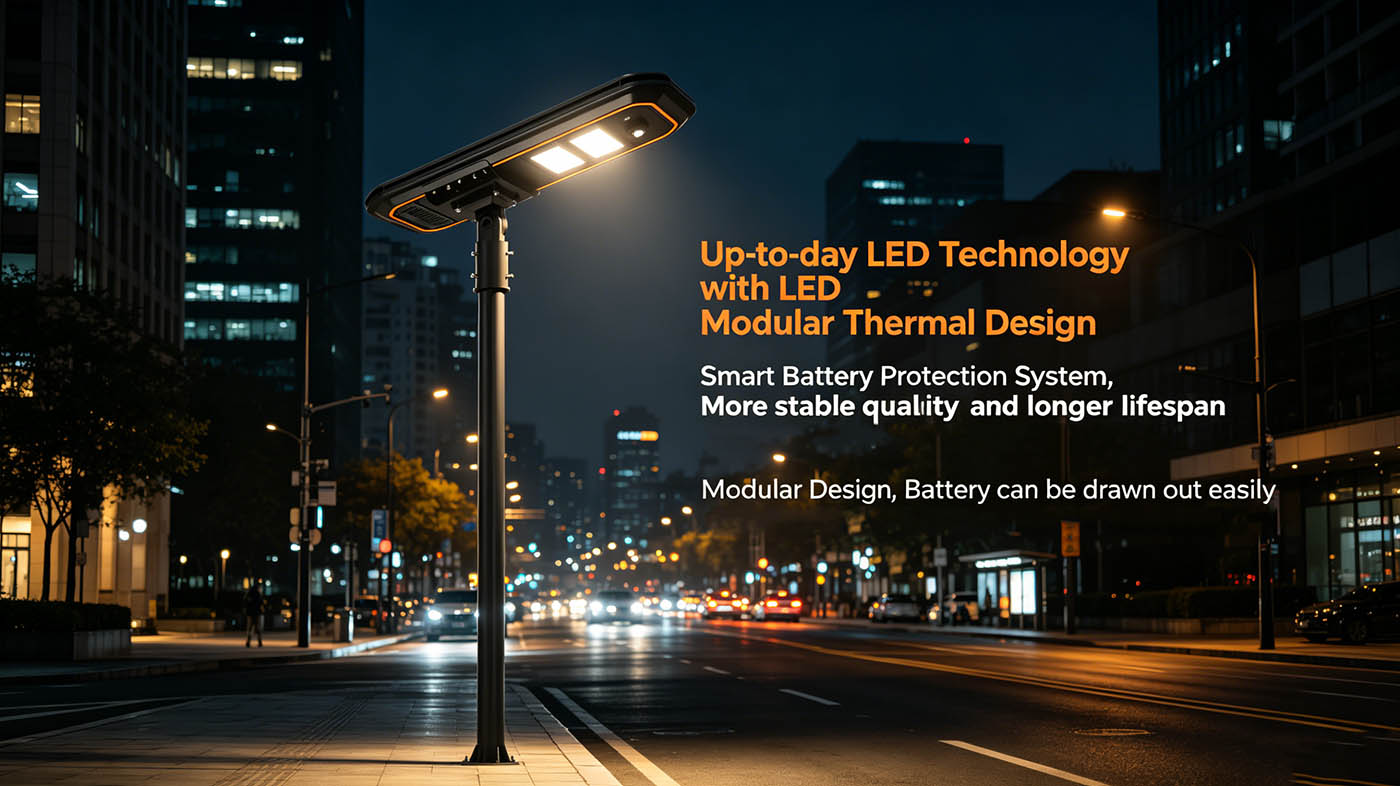

Selected Philips 5050 professional LED chips, with a luminous efficiency of up to 230Lm/W and a 40% increase in brightness for the same power; Low current drive has lower energy consumption, ultra-low light decay design, and a durable lifespan of over 80000 hours for the light source. 30W standard output 5400 lumens high brightness lighting, evenly and transparently paving roads, fully covering rural roads, park areas, and coastal alleys.

Military grade lithium iron phosphate battery, with ultra long endurance and no fear of rainy days

Built in military grade LiFePO4 lithium iron phosphate battery, with a single 30W model equipped with 12.8V24Ah high-capacity battery cells, with over 2000 battery cycles;

Equipped with an integrated intelligent protection system, it provides full circuit protection against overcharging and overdischarging.

The battery module has an IP66 waterproof rating and is resistant to water immersion, moisture resistance, and coastal salt spray corrosion.

Full power on for 13 hours, energy-saving dimming mode with a battery life of up to 43 hours, and stable lighting on continuous rainy days.

Constant current intelligent electronic control+remote dimming, humanized and flexible control

Adopting true constant current control technology, the output current is stabilized and the voltage fluctuation does not flash or damage the light source;

Paired with remote control and multi level lighting mode, adjust brightness and timer switch as needed.

During the day, the photovoltaic panel can store energy independently (30W with 50W/18V high-efficiency photovoltaic modules), and even in low light and cloudy days, it can still store electricity efficiently.

The fully automatic light sensing system automatically lights up when it gets dark.

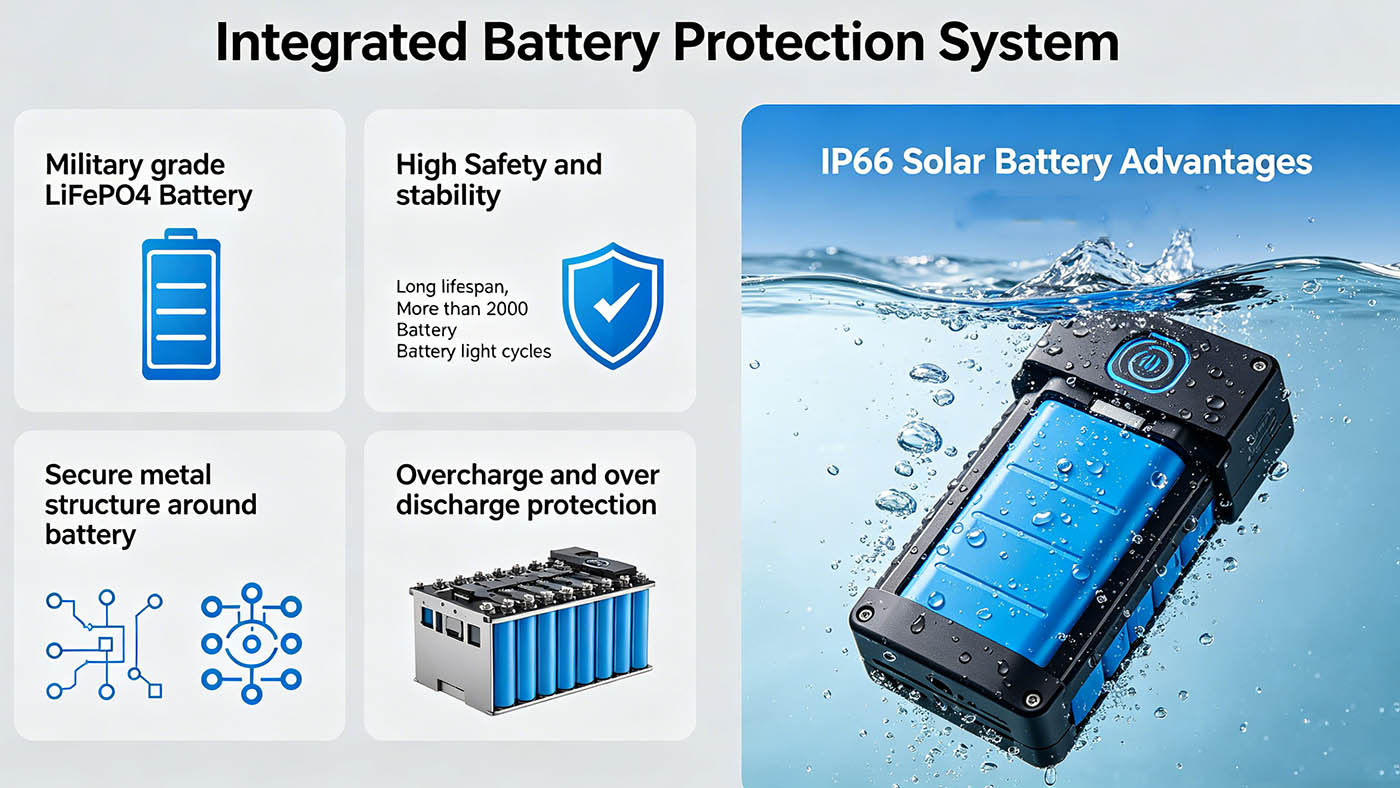

Military grade lithium iron phosphate battery (using 30W as an example: 12.8V24Ah), with a cycle life of>2000 times and durability;

Equipped with a fully integrated battery protection system, it has overcharge and overdischarge protection functions, and there is a metal protection structure around the battery to ensure high safety;

The battery module is IP66 waterproof and dustproof, can be immersed in water for protection, and can be used stably in outdoor rainy and coastal humid environments;

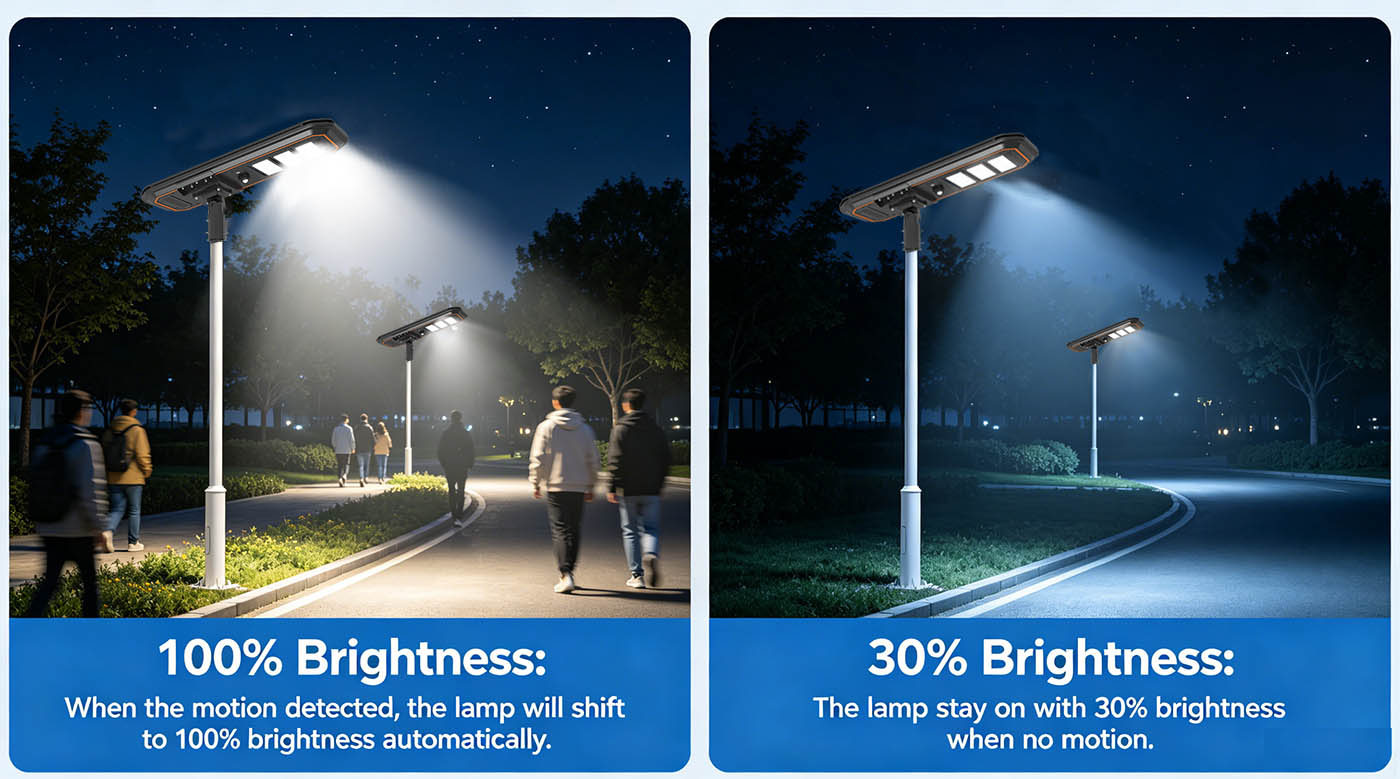

Excellent battery life: The 30W model has full power with 100% brightness and can last for 13 hours. In 30% dimming mode, the battery life can reach 43 hours, and the battery life is excellent on rainy days.

Equipped with high-efficiency photovoltaic panels (30W model with 50W/18V photovoltaic modules) as standard, the daytime charging conversion rate is high, and it can effectively store electricity even in low light environments;

True constant current control and constant current driving technology, stable voltage and constant current output, voltage fluctuations do not affect the brightness of the lamp, and extend the life of the battery and light source;

Supporting remote control function and multiple dimming modes, the lighting power and working time can be set according to needs, flexibly adapting to different usage scenarios in rural areas, parks, and roads.

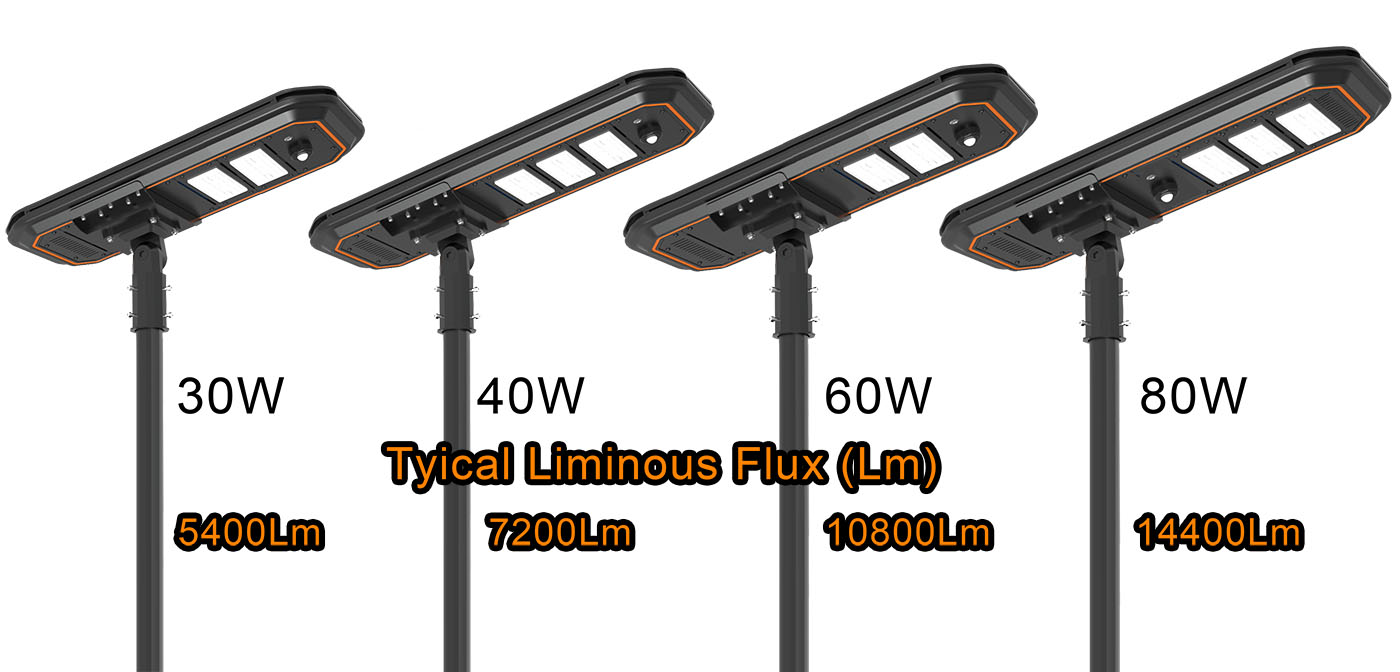

30W is suitable for 4-5 meter lamp posts, 40W is suitable for 5-6 meters, 60W is suitable for 6-7 meters, and 80W is suitable for 7-8 meters.

Clear selection, suitable for various scenarios such as rural roads, municipal roads, and park parking lots;

Thickened and reinforced foundation, resistant to typhoons and hurricanes, rust proof treatment for the shell, suitable for harsh outdoor environments such as islands, coastal salt spray, rainy days, etc;

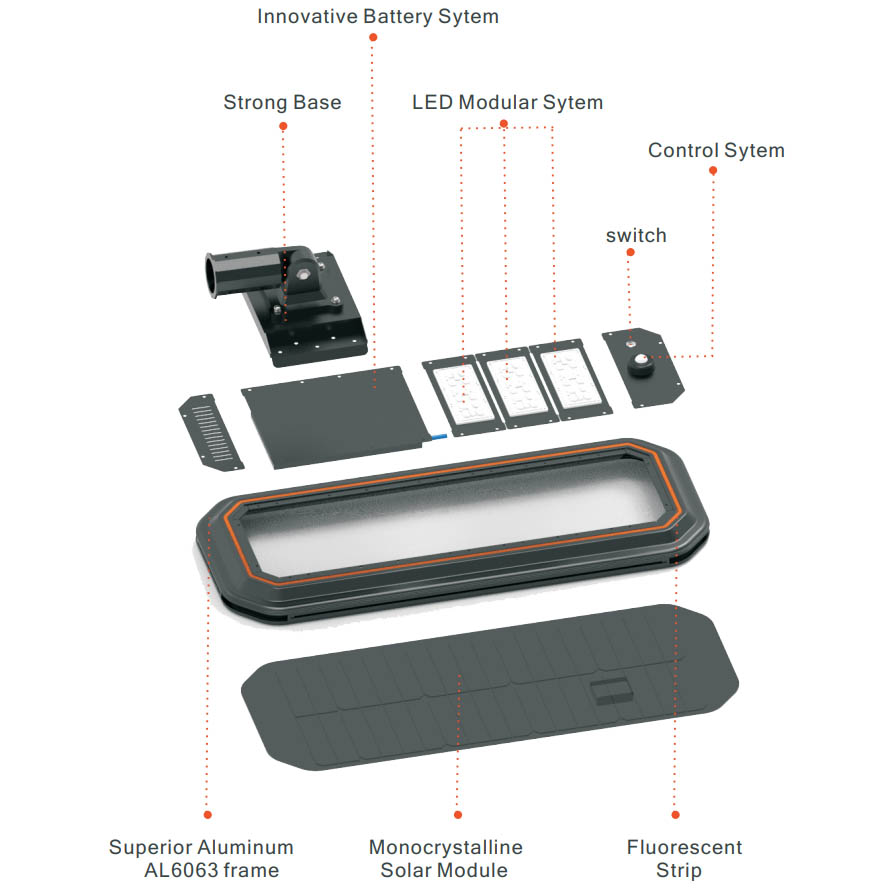

Integrated design: The entire body of photovoltaic, battery, light source, and controller is integrated without exposed wiring, avoiding the hidden dangers of small animals gnawing on wires and suburban rainwater leakage, and complying with the EU CE-LVD electrical standard.

Coastal weather resistant configuration: The whole machine is IP65 fully sealed, dustproof and waterproof, with an aluminum alloy shell and UV resistant powder coating, which can resist salt spray corrosion along the Atlantic coast of Brittany.

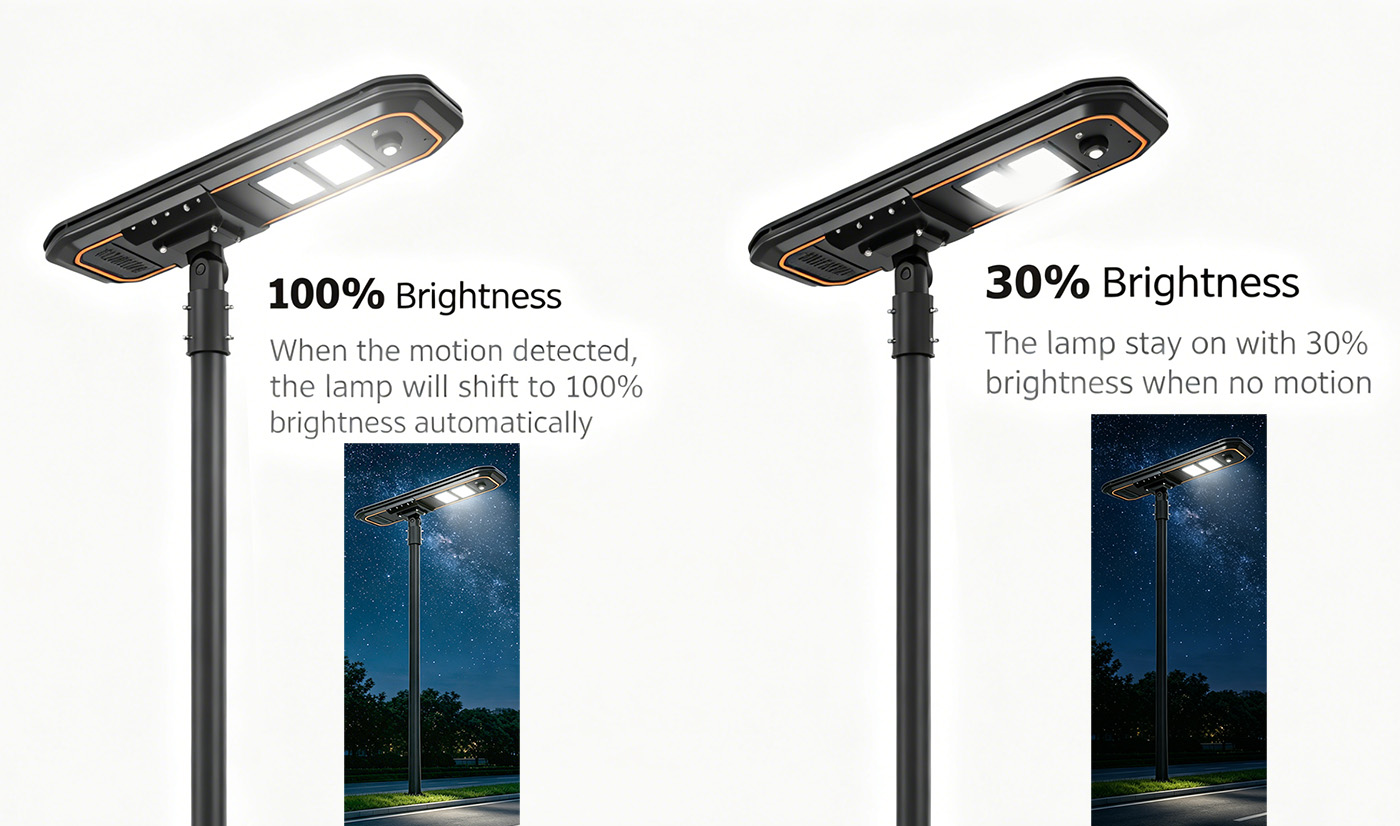

Intelligent dimming system: equipped with PIR human body sensing and light sensing controllers, it will light up at full power when pedestrians and vehicles pass by at night, reducing power by 30% during autonomous driving, in compliance with European rural low-carbon energy-saving regulations.

Convenient construction: Only fixtures are needed to fix the poles, without the need for pre embedded cables or transformers, greatly reducing the construction cost of dispersed roads in urban and rural areas.

Adopting true constant current control technology, the output current is stabilized and the voltage fluctuation does not flash or damage the light source;

Paired with remote control and multi level lighting mode, adjust brightness and timer switch as needed.

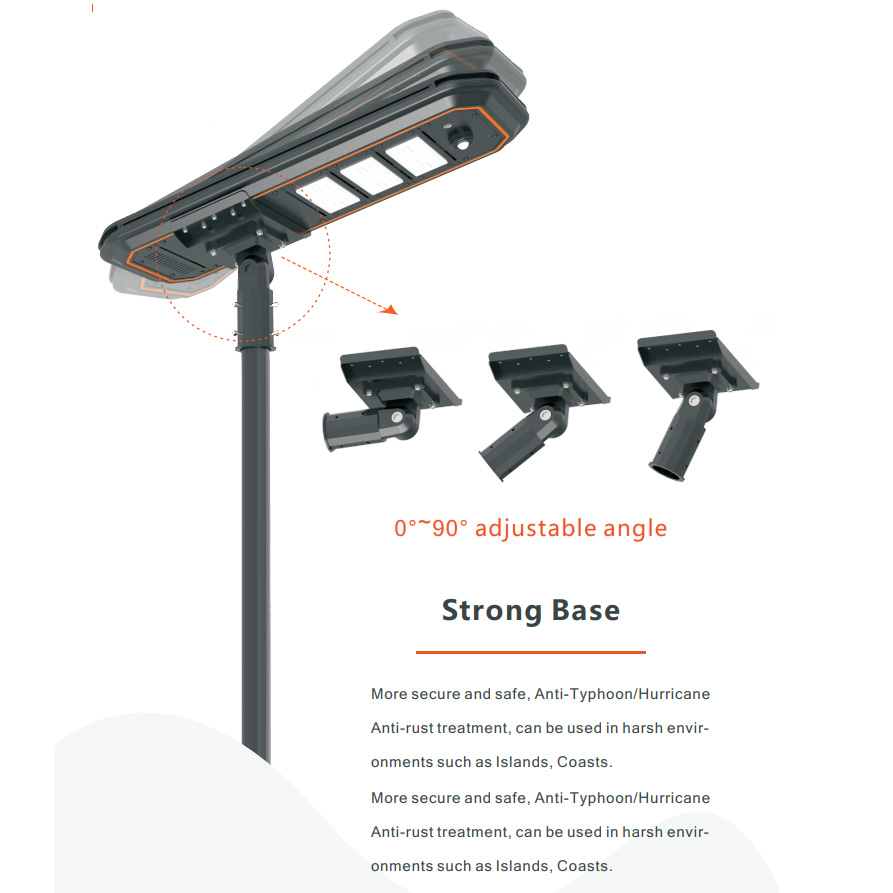

0 °~90 ° multi angle adjustable installation bracket, which can flexibly adjust the lighting angle of the lamps to adapt to different road widths and installation pole positions;

During the day, the photovoltaic panel can store energy independently (30W with 50W/18V high-efficiency photovoltaic modules), and even in low light and cloudy days, it can still store electricity efficiently.

The fully automatic light sensing system automatically lights up when it gets dark.
